ABSTRACT

Using the vortex filament model with the full Biot-Savart law, we show that non-straight bundles of quantized vortex lines in HeII are structurally robust and can reconnect with each other maintaining their identity. We discuss vortex stretching in superfluid turbulence in many cases. We show that, during the bundle reconnection process, Kelvin waves of large amplitude are generated, in agreement with previous work and with the finding that helicity is produced by nearly singular vortex interactions in classical Euler flows. The reconnection events lead to changes in velocities, radius, number of points and total length. The existence of reconnections was confirmed by other authors using the model of nonlinear Schrödinger equation (NLSE). Our results are agreed with the finding of other authors and extension to our numerical experiments.

1. Introduction

It has been realised that the disordered motion of a tangle of quantized vortices play an important part in the behavior of superfluids. The flow is generally turbulent for high-velocity or high Reynolds number flows. Although turbulence has been studied intensely in many fields, it is still not yet well understood because it is a complicated dynamical phenomenon with strong nonlinearity [1]. Vortices are not well-defined for a typical classical fluid, and the relationship between vortices and turbulence remains indistinct. The liquid state of ⁴He exists in two phases: Helium I and Helium II [2]. The boundary between these phases is called the lambda line, which occurs at the critical temperature T = T_λ = 2.1768 K [3]. Characteristic phenomena of superfluidity were discovered by Kapitza et al. in 1930s. Superfluid heluim ⁴He is described by the two-fluid model, where the system consists of a viscous normal fluid has density and an inviscid superfluid has density with two independent velocity v_n and. The superfluid velocity field is given by, where is some constant determined by assuming that the action of a single helium atom in the fluid to be quantized in units ofPlanck’s constant, is the distance from the vortex axis and is the unit vector in the tangential direction [4,5]. The circulation of the vortices is quantized as

(1)

where is a path around the axis of the vortex and the constant is called the quantum of circulation

(2)

and is the mass of a ⁴He atom. The constant is given by

(3)

From Equation (1), it follows that the superfluid velocity field around the vortex is

(4)

A quantived vortex is different from a vortex in a classical fluid where the circulation is quantized, which is contrary to a classical vortex that can have any value of circulation [6].

The dynamics of quantized vortices can be described by the Gross-Pitaevski (GP) model [7],

(5)

where is the order parameter filed, is an external potential, is a coupling constant, and is the mass of each particle. This description is most applicable in the limit of, where the normal fluid is absent. This model can also be used to explain phenomena related to vortex cores, such as nucleation and reconnection. However, the GP model is applicable to Bose-Einstein condensation of a dilute atomic Bose gas. It is, however, not applicable quantitatively to superfluid ⁴He, which is not a weakly interacting Bose system. For more details, we refer to Refs. [8-10].

The second formulation for studying the dynamics of quantized vortices is called the vortex filament model. The aim of this work is to use this model under the full Biot-Savart law to make numrical simulations to examine the dynamics of inviscid vortex filaments, specifically what happens at vortex including reconnection events. This model was pioneered by Schwarz [11,12], where the vortex lines are numerically discretized by a large, variable number of points depends on the local radius of curvature. We will briefly describe this model in the next section.

2. Vortex Filament Model

As we mentioned in the Introduction, the quantized vortex has quantized circulation and the vortex core is very thin. These properties allow a quantized vortex to be considered as a vortex filament. In the vortex filament model a quantized vortex is represented as a filament passing through the fluid. In the case of superfluid ⁴He, the vortex core radius is many orders of magnitude smaller than the average separation between vortices (typically, to cm in turbulence experiments), or any other scale of interest in the flow; it is therefore expedient to consider a superfluid vortex filament as a space curve of infinitesimal thickness in three dimensional space, where is the arc length and t is the time. The vortex lines are numerically discretized by a large variable number of points , which are called vortex points [13,14]. The governing equation of motion of the superfluid vortex lines is

(6)

where is the unit tangent, is the normal fluid velocity, and are temperature-dependent friction coefficients, and the total velocity of the vortex filament without dissipation is given by

(7)

where is the background superfluid velocity field, is a cutoff parameter corresponding to radius of the vortex filament, and are the lengths of the two adjacent line elements connected to the point and represents integration along the vortex line outside the region specified by and [5,15]. In the absence of normal fluid, vortex lines move with the local superfluid velocity where the friction coefficients, and, will be equal to zero. And so, the equation of vortex motion will be

(8)

3. Numerical Results

In our numerical experiments we use the model of Schwarz which is explained in detail in Ref. [16]. The filaments are discredited into a large variable number of points, N; this (Lagrangian) spatial discretization depends on the local radius of curvature: vortex points are removed in regions where filaments straighten and are added where the local radius of curvature becomes smaller. The time evolution is computed using a fourth order Runge-Kutta scheme with fixed time step. The first and second derivatives in Equation (8) can be computed by using the central difference formula which is second order in space [17].

So, for a vortex configuration modeled by vortex segments, we must solve a system of coupled first order differential equations.

Our simulations are performed in a cubic box of volume, where (typically, we chose or) with periodic boundary conditions. In this work, we use the vortex filament model in which vortex reconnections are performed by the numerical algorithm (rather than occurring as natural solution of the governing equation, as in the model of nonlinear Schrödinger equation (NLSE)) [18,19]. In our method, we firstly select these points which are candidates for a reconnection. This selection is based on the distance between those points, where the reconnection between two lines can takes place only if they have different directions. For more details, we refer the reader to Refs. [20-22].

By using the vortex filament method, we study the interaction of two non-straight vortex bundles (with sinusoidally) each one of them contains a given number M of (initially) non-straight parallel vortex strands, set (initially) at (vortex with antivortex bundles).

If two vortex strands become closer to each other than the local discretization along filaments, then, consistently with the orientation of the filaments, our numerical code reconnects the strands, provided that the total length is decreased [16]. As first, we set a single vortex with a single antivortex as shown in Figure 1, and we found that the two vortices trend to each other and the reconnection between them takes place. These results are in agreement with the finding of Koplik and Levine [23], who used the NLSE model.

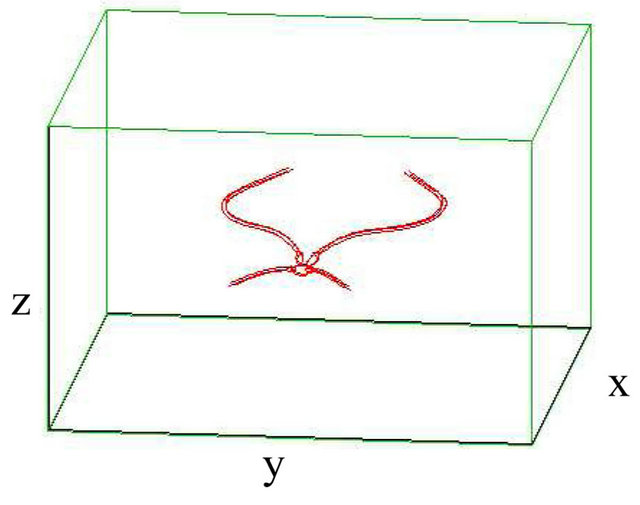

In the case of bundles, the initial position of vortex strands within the same bundles is symmetric, and we found that the reconnection events are still possible in different values of M. When M = 3, we place three vortices at the corner of a equilateral triangle. The interaction between the bundles makes them to bend in the direction of each other, until, the first reconnection takes place. With the evolution, the second reconnection is found at, then they become free from each other at, and move away, see Figure 2.

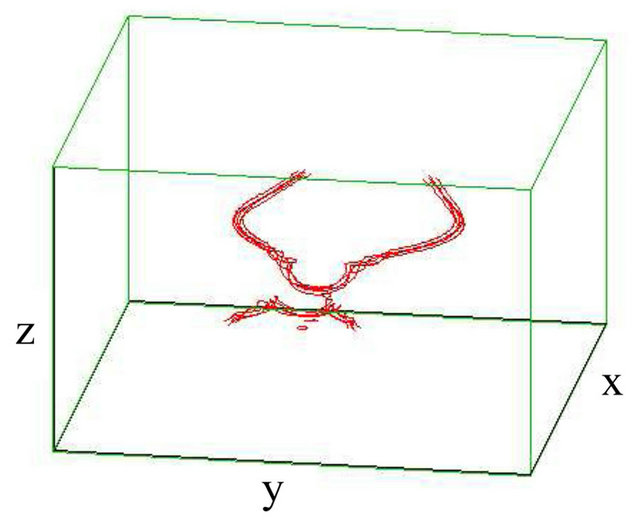

A typical result for two bundles of five non-straight parallel vortex with sinusoidally strands each, where one of them against the other (vortex bundle with antivortex bundle), the radius of each bundle A = 0.0155804 cm, the distance between the closest point between the two non-straight bundles is shown in the upper-left panel of Figure 3. In this case, we place four vortices at the corner of a square lie on a circle and one vortex in the middle. We found, that vortex bundles with sinusoidally are structurally stable structures. To some extent they survive a time longer than their characteristic time of rotation and travel a distance larger

than their size. Remarkably, vortex bundles survive reconnections with other bundles without disintegrating, but rather amplifying their vortex length, where the total length L increases by about as appear in the upperleft panel of Figure 4. The successive evolution involves the reconnections of all strands, until, at time, after which the two bundles separate from each other (lower-right panel of Figure 3) and move away in agreement with Koplik and Levine results [23]. It is clear that Kelvin waves are generated as result of a recon-

nection, see Figure 3. The upper-right panel of Figure 4 shows the average inverse radius of curvature, , obtained by computing at each discretization point and then averaging over all discretization points. As a result of the increase in and the decrease of, the number of discretization points (initially) grows with time up to when we stop this particular calculation as shown in the lower-left panel of Figure 4. As shown in the lower-right panel of Figure 4 the decrease of causes the increase in the average velocity of vortex points.

These calculations are performed in a cubic periodic box, where.

4. Conclusion

This work deals with the numerical simulation of the motion of inviscid vortex filaments under full BiotSavart law. The calculations presented here were made when the periodic boundary conditions are applied in all axes. The very known fourth order Runge-Kutta method was used for the time evolution. The reconnection and vortex stretching in superfluid turbulence is concerned. The existence of reconnections was proved by Koplik and Levine [23] using the model of nonlinear Schrodinger equation in order to confirm Schwarzs insight that quantized vortices reconnect [11]. We found that the single vortex with single antivortex can be reconnect together by using the vortex filament method as confirmed beforetime by Koplik and Levine [23]. A noteworthy feature of the reconnection between two vortex lines is the ability of their reconnection can be takes place only when they have different directions. Our main finding was that non-straight bundles (with sinusoidally) of quantized vortex lines in He II are structurally robust and can reconnect with each other maintaining their identity. The interaction between two bundles makes them approach each other closely and then the reconnection occurs one by one after which the two bundles separate from each other. This is in agreement with our previous experiments [2]. This leads to increasing in total length, velocity and the number of vortex points and decreasing the average radius of curvature.

5. Acknowledgements

The authors are grateful to Prof. Carlo F. Barenghi and Prof. Eed M. Darwish for useful discussions and a critical reading of the manuscript. This work is supported by the Deanship of Scientific Research at Taibah University (Project No. 1433/1790).
