ABSTRACT

Multispectral microscopy enables information enhancement in the study of specimens because of the large spectral band used in this technique. A low cost multimode multispectral microscope using a camera and a set of quasi-monochromatic Light Emitting Diodes (LEDs) ranging from ultraviolet to near-infrared wavelengths as illumination sources was constructed. But the use of a large spectral band provided by non-monochromatic sources induces variation of focal plan of the imager due to chromatic aberration which rises up the diffraction effects and blurs the images causing shadow around them. It results in discrepancies between standard spectra and extracted spectra with microscope. So we need to calibrate that instrument to be a standard one. We proceed with two types of images comparison to choose the reference wavelength for image acquisition where diffraction effect is more reduced. At each wavelength chosen as a reference, one image is well contrasted. First, we compare the thirteen well contrasted images to identify that presenting more reduced shadow. In second time, we determine the mean of the shadow size over the images from each set. The correction of the discrepancies required measurements on filters using a standard spectrometer and the microscope in transmission mode and reflection mode. To evaluate the capacity of our device to transmit information in frequency domain, its modulation transfer function is evaluated. Multivariate analysis is used to test its capacity to recognize properties of well-known sample. The wavelength 700 nm was chosen to be the reference for the image acquisition, because at this wavelength the images are well contrasted. The measurement made on the filters suggested correction coefficients in transmission mode and reflection mode. The experimental instrument recognized the microsphere’s properties and led to the extraction of the standard transmittance and reflectance spectra. Therefore, this microscope is used as a conventional instrument.

Keywords:

Multispectral Imaging, Reference Wavelength, Correction Coefficients, Modulation Transfer Function

1. Introduction

Multispectral microscopy establishes a link between spatial and spectral information resulting from light-matter interaction. It can be described as spectroscopy and microscopy coupler. This technique is well established in remote sensing and satellite imagery areas. It is now extended to the microscopy area because of its various advantages.

Several works illustrate the importance of multispectral microscopy. Zoueu et al. [1] have shown that using multispectral imaging allows detecting malaria without using fluorescent labels for parasites as it is the case of thick and thin blood smears. Multispectral imaging is an important tool in the delimitation of reserved forests [2] and also in agriculture framework for rapid detection of fruit diseases [3] [4] .

Several multispectral imaging technologies, in spite of their high cost, are used in the sequential or parallel acquisition of images of the same scene using different wavelengths and generate an optical spectrum associated to any pixel in the image [5] . Progresses are observed in the implementation of low cost multi spectral imaging devices. Merdasa et al. [6] have modified a classical microscope where the white source is replaced by quasi monochromatic sources and adapted to multispectral imaging device to detect malaria. But the microscope is limited to five spectral channels (wavelengths) in the visible spectral range. Increasing the number of spectral channels in the visible spectrum and expanding channel acquisition to the light that is outside the sensitivity of the human eye offer several advantages. Mikkel Brydegaard et al. [2] have constructed a multispectral microscope with a large spectral band ranging from ultraviolet to near-infrared wavelengths, active in transmission mode and which allows an information enhancement in the study of specimen.

In such a system, the spectral information reconstruction requires images of acceptable quality (sharp and of the same scale). But, using a large spectral band induces the variation of focal plan position of the imager due to the phenomenon of chromatic aberration which affects the quality of the images. This is a major problem met in multispectral imaging. To reduce distortion due to chromatic aberration, reflex objective can be used such as Cassgrain objective [7] ; a two-lens system or an apochromatic triplet equips some systems to reduce curvature of the image and to minimize residual aberrations in the focal plane [8] [9] . The method of refocusing focal plan of the multispectral device can be done at each spectral channel [10] . This solution can introduce a geometrical offset on one hand and slow down the acquisition protocol of the imaging system on the other hand.

In the present work, a low cost multimode multispectral microscope with Cassgrain objective using a camera and a set of monochromatic Light Emitting Diodes (LEDs) as illumination sources was constructed and we present a new approach to calibrate that instrument to be a standard one. By calibration, we mean:

- the determination of the wavelength used to fix its focal plan where the phenomenon of chromatic aberration is more reduced,

- the correction of the extracted spectra from the images making them in agreement with the standards spectra,

- the determination of modulation transfer function which is an important tool in an imager’s characterization,

- the evaluation of its capacity to recognize the specimen’s properties.

For this purpose, we used it to make measurements on samples with well-known properties such as homogeneous filters and organic polymer’s microspheres (latex) with diameter before using it on specimen with unknown properties. Measurements were done in transmission mode, reflection mode and scattering mode. Results are analyzed using multivariate analysis methods.

2. Materials and Methods

2.1. Multi Spectral Device’s Description

Figure 1 presents the multimodal and multispectral microscope constructed. The device used in this work is an

improved version of the LED multispectral microscope built by Brydegaard et al. [2] , adapted and descripted by Zoueu et al. [7] .

The light sources S1, S2 and S3 are controlled via a data acquisition (DAQ) connected to a computer (PC). All are controlledby a LabView (Lab View 8.6, licence no. M 74 × 11278) operation code. Each light source is a set of quasi-monochromatic Light Emitting Diodes (LEDs) with the following spectral band: 375 nm, 400 nm, 435 nm, 470 nm, 525 nm, 590 nm, 625 nm, 660 nm, 700 nm, 750 nm, 810 nm, 850 nm, 940 nm. Before any measurement, we need to align all the optics. All The measurements are done in the darkness to minimize back ground light.

2.2. Measurement’s Procedure

Measurements are made on two types of samples:

-Filters, used as homogeneous samples whose standard spectra are extracted from the spectrometer (Compact Spectra Suite Ocean Optics USB4000).

-Organic polymer’s microspheres (latex) with diameter whose properties are known. There are the homogeneity, the isotropicity and the spherical geometry.

The microspheres’ samples are prepared on slides made of the highest purity, corrosion-resistant glass with dimensions 75 mm × 25 mm × 1 mm. The measure in each mode (transmission, reflection or scattering) needs three types of images acquired in the same acquisition conditions:

-The image , or if it’s about transmittance’s measure, reflectance’s measure or scattering’s measure respectively. That image contains noise due to the parasite light in the dark environment and to the set-up electronic system;

-The image, or is due to noise respectively in transmission mode, reflection mode or scattering mode;

-The image, or is for the reference in transmission mode, reflection modes or scattering mode respectively.

To make the measurement, we first select a wavelength of illumination called reference wavelength. One illuminates the sample at this wavelength and we make sure that the image is well contrasted before running the measurement. The measurement is an automated acquisition of thirteen images from the same scene and each image corresponds to a wavelength of illumination. The wavelengths selection as reference is part of the goals of this study.

In the transmission mode, we active the geometry “brightfield” as indicated on the interface presented by Lab view operation code. The signal is measured after having put the slide containing the sample on the microscope’s holder. The reference signal in the transmission mode is measured by maintaining the same slide on the microscope’s holder so that an image of the around area of the sample is acquired. For the measure of, the microscope’s holder is kept empty and the electric battery for the different LEDs is set off to avoid eventual illumination of the camera. In order to rise up the acquisition speed, we establish a measurement protocol, that’s to say we acquire one of the signals, or in a specific condition; this condition constitutes the protocol we call through our operation code to acquire the two other signals.

The corrected image of the sample is given by the relation (1):

. (1)

In the measurement of the reflectance, the alignement of optics in the microscope and fixation of its focal plan at the reference wavelength being done during the measures in transmission mode, we active the geometry ”reflection” inthe Lab view code interface in order to run the automated acquisition of the thirteen images.The signal ismeasuredafter having put the slide containing the sample on the microscope’s holder.The signal is acquiredby usinga diffuser in the place of the sample, with its white face upin the microscope. The diffuser eliminates dissymetry light dispatching andallows anuniform intensity distributionin the camera’s field of theview [3] . To acquire the image, , the microscope’s holder is kept empty in order to get parasite reflection dueto the opticsin the microscope. The corrected image of the sample is given by the relation (2) [3] :

. (2)

In scattering mode, the geometry “darkfield” is activated to run the automated acquisition of the thirteen images. The signal is measured after having put the slide containing the sample on the microscope’s holder. The signal is measured by using a diffuser in the place of the sample, with its white face down in the microscope. To get the image, we put an empty slideon the microscope’s holder.The corrected image of the sample is given by the relation (3):

. (3)

3. Results and Discussion

3.1. Choice of Reference Wavelength

The measure on a specimen in a mode consists to run an automated acquisition of a set of thirteen images from the same scene with each image corresponding to one wavelength of illumination. But before running the automated acquisition, we choose a wavelength of illumination called reference wavelength. We illuminate the sample at this wavelength and we appreciate the contrast of the image before doing the measurement. The contrast of the image reveals that the image is in the focal plan (of the multi spectral microscope) corresponding to that reference wavelength. But, the focal plan of an optical system depends on the wavelength of illumination (light) which passes through the system. Since the acquisition is made on a set of the thirteen quasi-monochromatic sources, then the other twelve images are not in focal plan defined by the chosen reference wavelength. This constitutes a difficulty metin multi spectral imaging system using a large spectral band. The variation of focal plan position is due to the phenomenon of chromatic aberration depending on the refractive index variation of the optical system in function of the wavelength for the light passing through it. This phenomenon rises up the diffraction effects and blurs the images inducing shadow around them. To get the best reference wavelength for all the three modes, we used each of the thirteen wavelengths as a reference wavelength followed by the acquisition of the set of the thirteen images in transmission mode. Then, we proceed with two types of images comparison. Each wavelength chosen as a reference defines a focal plan. In each set of the thirteen images acquired after the choice of the reference, there’s only one image which is well contrasted. Indeed, this image is acquired with light source used to fix the focal plan. Then, we have thirteen contrasted images, each one corresponding to a reference wavelength. First, we compare these thirteen contrasted images to appreciate that presenting more reduced shadow. This comparison highlights that the reference wavelengths 590 nm, 625 nm, 660 nm and 700 nm are the ones whose corresponding images present more reduced shadow spreading on 7 pixels, 8,06 pixels, 7,07 pixels and 7 pixels respectively (Figure 2(a)). In second time, we determine the mean of the shadow size over the images from each set. The comparison shows in Figure 2(b) that the reference wavelengths 590 nm, 625 nm, 660 nm, 700 nm and 750 nm are the ones whose corresponding set of images present more reduced shadow spreading on 9.31 pixels, 9.67 pixels, 8.66 pixels, 8.01 pixels and 9.14 pixels respectively.

The first comparison shows that fixing the focal plan with the reference 590 nm or 700 nm, the microsphere’s image observed at the wavelength 590 nm or 700 nm respectively, present more reduced shadow (Figure 2(a)).

The second comparison reveals that only with the reference 700 nm, the microsphere’s images acquired using the set of the thirteen wavelengths present in average more reduced shadow (Figure 2(b)). These two types of

comparison allow to select 700 nm as the best reference wavelength to fix the focal plan of the multi spectral microscope.

3.2. Spectra Extraction and Correction Coefficients

The images acquired from different filters (filter 1, filter 2 and filter 3) with the microscopeled to the extraction of their spectra in transmission and reflection modes. Figure 3 and Figure 4 present a comparison of these spectra

with the spectra obtained from the same filters with the spectrometer Compact Spectra Suite. We can see in Figure 3 and Figure 4 that in transmission mode and in reflection mode, the two types of spectra show similar profile which indicates the nature of the different filters (filters 1, 2 and 3 are respectively pass-band, pass-band and pass-high, pass-high) but do not coincide. The filters transmit more and reflect less light than in the case we use the multi spectral microscope. So, we need to suggest a correction and make spectra in well agreement. The pixel intensity from a spectral channel (p) is the contribution of the source of illumination, the spectral sensibility of camera and the standard spectrum of the specimen. The intensity, in absence of fluorescence is given by the Equation (4) [2] [11] :

. (4)

The thirteen wavelengths ranging from 375 nm to 940 nm give thirteen spectral channels (p). takes the different values of emission spectral band of the LED. The spectra are discrete because they are built on thirteen points joint through Matlab. The points represent intensity of a pixel in function of the positions of the picks for the spectral emission of the LEDs. The intensity in a pixel is an average taken over an emission spectral band of a quasi-monochromatic LED source. This causes a discrepancy between the spectra obtained from the multi spectral microscope and the standard spectra [12] .

The transfer function of system in each spectral channel is derived from the formula (4) [12] :

. (5)

is a constant chosen to normalize over the passband of the channel (p).

The Equation (4) does not take into account the imperfection of the optics in the multi spectral device. That induces discrepancy between the constructed spectra and the standard spectra. Chromatic aberration, eventual fluorescence of the specimen and camera shot noise also induce this discrepancy [2] . Beside these causes, the non-monochromaticity of the LEDs contributes to the discrepancy. Indeed, if is the size of the pass band for a spectral channel (p) around which Taylor development of standard spectrum is made, the Equation (4) becomes [12] :

. (6)

We can see easilythe contribution for the LED’s non-monochromaticity to the discrepancy. Figure 3 shows that the discrepancy tends to disappear when the standard transmittance tends toward zero value. It appears when the standard transmittance rises up. This variation reveals that the standard and multi spectral transmittances can be linked through this linear relation:

. (7)

is the transmittance spectrum got from the multi spectral microscope; is the standard transmittance spectrum; is the standardization coefficient for transmittance got from multi spectral device. It’s an average obtained over the spectral band where discrepancy exists and over the three filters.

From spectra presented in Figure 3, we deduced. The relation (7) becomes:

. (8)

Figure 4 presents the measures of reflectance and shows that the standard and multi spectral reflectance can be linked through this relation (9).

(9)

is the reflectance spectrum got from the multi spectral microscope; is the standard reflectance spectrum; is the standardization coefficient for reflectance got from multi spectral device. It’s an average obtained over the spectral band and over the three filters (Figure 4). We highlight the reflectance spectra variation through the following Table 1 which suggests the mean value given by the relation (10):

. (10)

3.3. Determination of the Modulation Transfer Function

The modulation transfer function (FTM) is an important tool allowing to quantify an image quality. It expresses the imager’s capacity to transmit information from a scene in spatial frequency domain and determines its resolution. In this work, the FTM of our multi spectral imager in transmission mode is evaluated through the edge method [13] . The algorithm for the determination of the FTM consists of the following steps [14] :

- acquisition of an image of a tilted edge,

- determination of the edge spread function ESF,

- differentiation of the ESF to obtain the line spread function LSF,

- calculation of the Fourier Transform of the LSF to obtain the FTM.

For each illumination source, we evaluated the modulation transfer function following the lines and columns of the imager (Camera pixel size: 2.2 mm × 2.2 mm) called respectively horizontal FTM and vertical FTM (Figure 5).

The decrement of FTM for high spatial frequencies shows that our device behaves like a low-pass filter and transmits more details in low spatial frequency band. This decrement depends on the illumination wavelength used. Using the wavelength 375 nm, the decrement of the corresponding FTM (in low spatial frequency band) is the most quick but, as we use the wavelength 700 nm, the decrement of the corresponding FTM is less quick. This confirms that images acquired with 700 nm as illumination wavelength are more contrasted whereas the images acquired with 375 nm contain less detail.

3.4. Application to Organic Microspheres

After the determination of correction coefficients, the multi spectral microscope is used to make measurements on organic polymer’s microspheres of diameter with known properties (homogeneity, isotropicity and spherical geometry). The different measures are treated through multivariate analysis methods such as principal component analysis (PCA), k-means method [15] - [22] .

If a sample of three objects of colors red, green and blue is illuminated using red-light, only the red object will be observed. If it is illuminated using green light, only the green object will be seen. If it’s illuminated by blue light, only the blue object will be observed. So, each wavelength reveals specific information about the specimen. Figure 6(a) presents a spectral representation of microsphere’s images in transmission mode for the thirteen spectral channels corresponding to the different illumination wavelengths. In Figure 6(a), we can see thirteen images which seem to be identical; it means there’s a repetition of informations from a spectral channel to another. The analysis of these spectral images using PCA allows to isolate informations [15] - [18] . Applying PCA to the spectral images data (Figure 6(a)), we condense informations into new group so that they do not present any correlation between them and are ordered in terms of the percentage of variance giving more informations (Figure 6(b)). We observe that all the informations are quasi located into the first principal component (Figure 6(b)). Therefore, the PCA means that only one spectral channel or one illumination wavelength is sufficient to describe the microsphere. So, our multi spectral device confirms that the microsphere effectively is constituted of identical elements; that is to say it’s well homogeneous and isotropic.

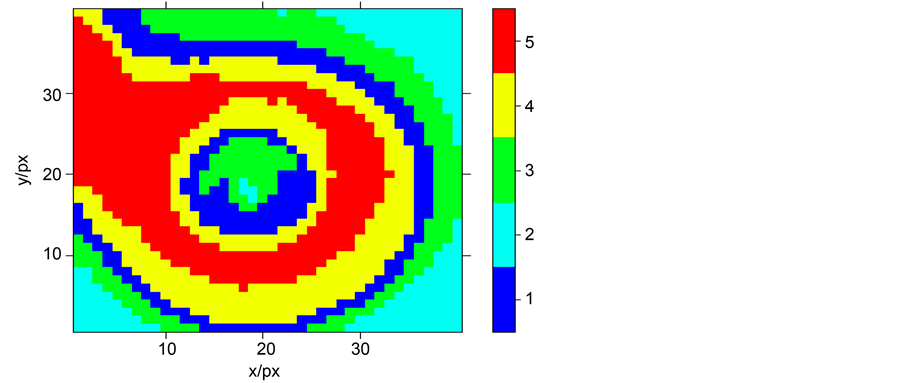

We apply K-means to an image by dividing its intensity dispatching in five clusters. This method puts the different parts of the microsphere into different clusters according to their similar spectra. We obtained the configuration in Figure 7. This figure shows that K-means method takes into account the intensity dispatching inside the microsphere by highlighting that this dispatching is not homogeneous. Indeed, parallel light rays coming on the microsphere have not the same incidence angles. So, reflections on the impact area are not the same according to Fresnel law given by the formula (11) [23] :

. (11)

and are respectively incidence angle and refraction angle and R is the Reflection.

That is due to the microsphere’s sphericity. Figures 8(a)-(b) present standardized spectra of a microsphere. Figure 8(c) shows a non-standardized spectrum in scattering mode.

4. Conclusion

A low cost multi mode multi spectral microscope using a camera and a set of monochromatic Light Emitting Diodes (LEDs) ranging from 375 nm to 940 nm as illumination sources was built. The microscope allows the automated acquisition of thirteen images from the same scene of a sample illuminated by each source, and the extraction of spectra corresponding to its three modes transmission, reflection and scattering. The goal of this work is to characterize it and valid its use. So, in transmission mode we determined its modulation transfer function which is an important characteristic tool of an imager. The wavelength 700 nm was chosen to be the reference for the image acquisition. At this wavelength, the acquired images are well contrasted and diffraction effects and chromatic aberration are reduced. Measurements made with filters suggested correction coefficients in transmission mode and reflection mode. By applying PCA to the microsphere’s images, the multi spectral device

has confirmed its homogeneity. Through K-means method, the experimental instrument recognized the sphericity of the microsphere. This led to the extraction of the standard transmittance and reflectance spectra. Therefore, this microscope is used as a routine instrument.
